Insulated Glamping Dome with Glass Wall

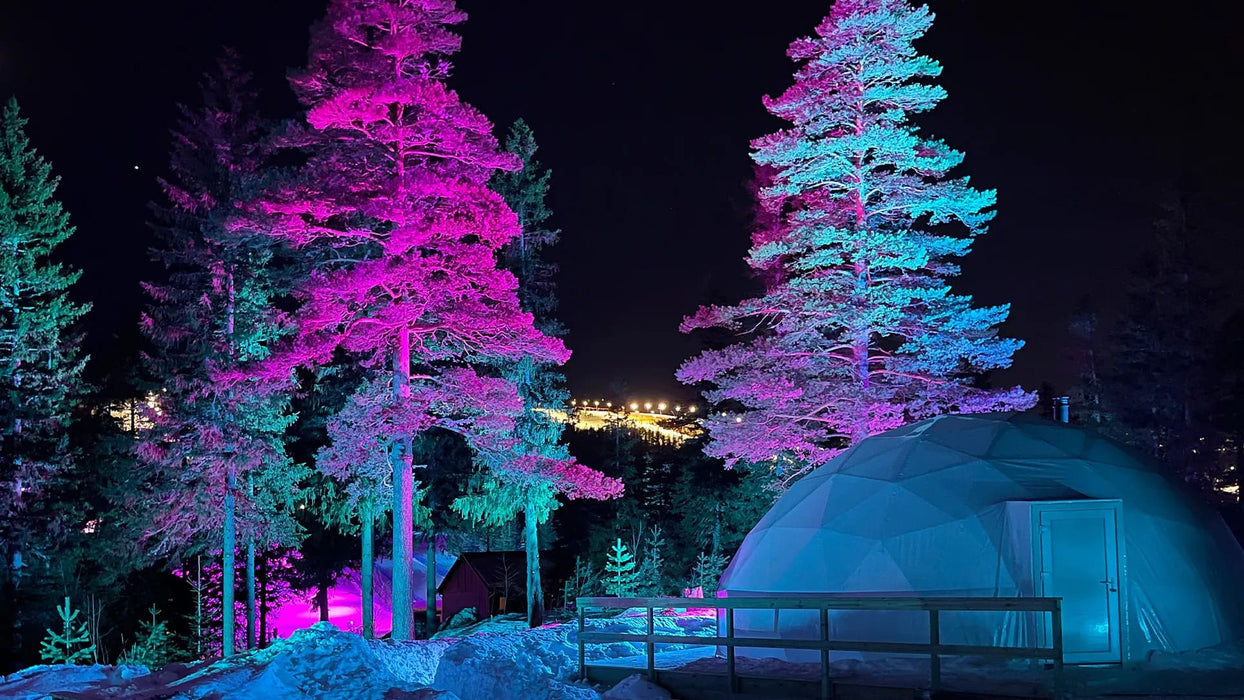

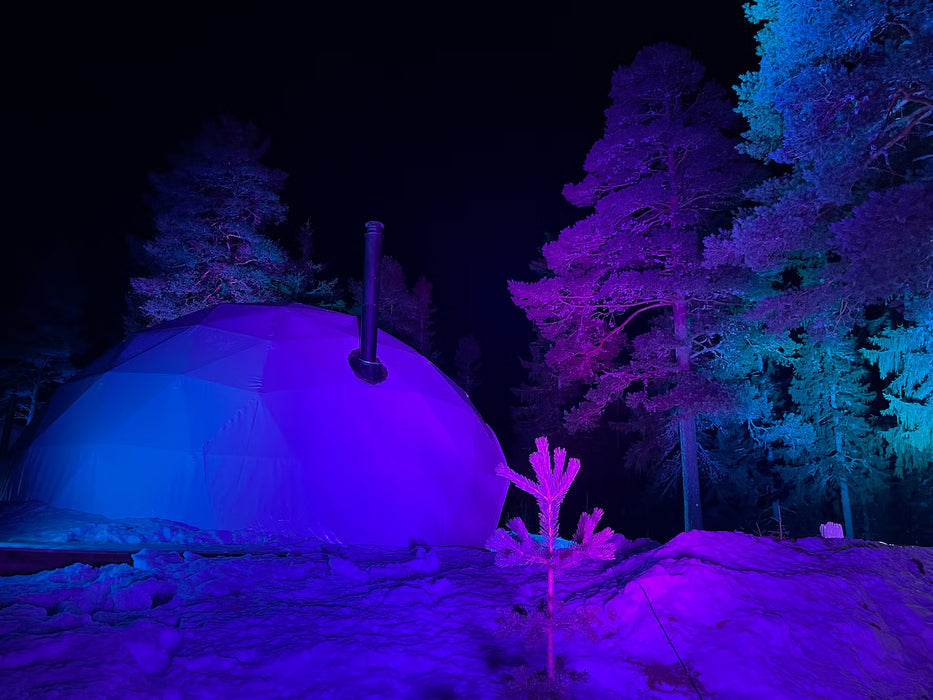

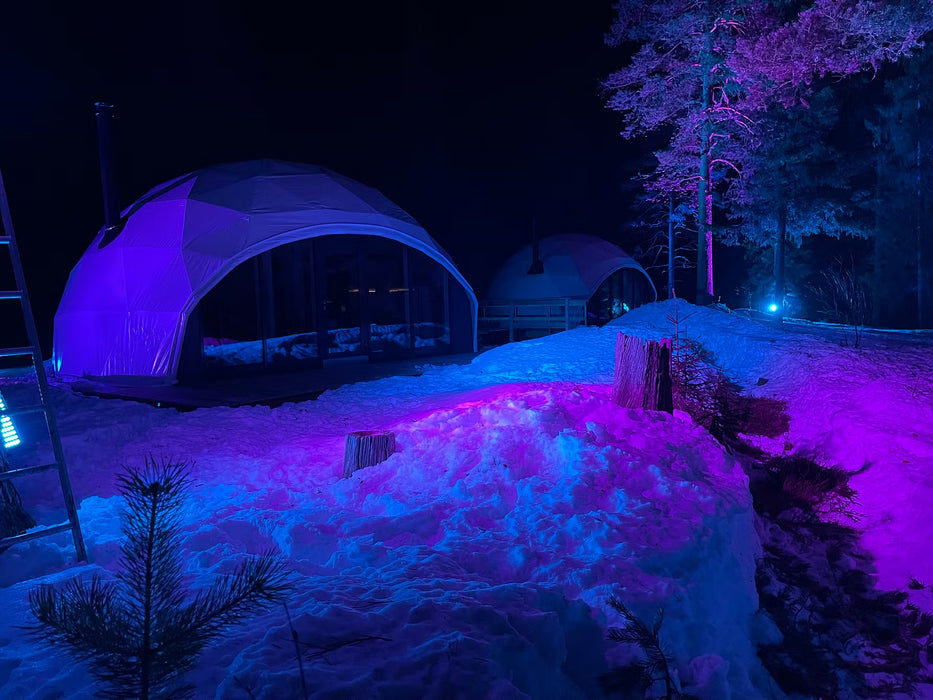

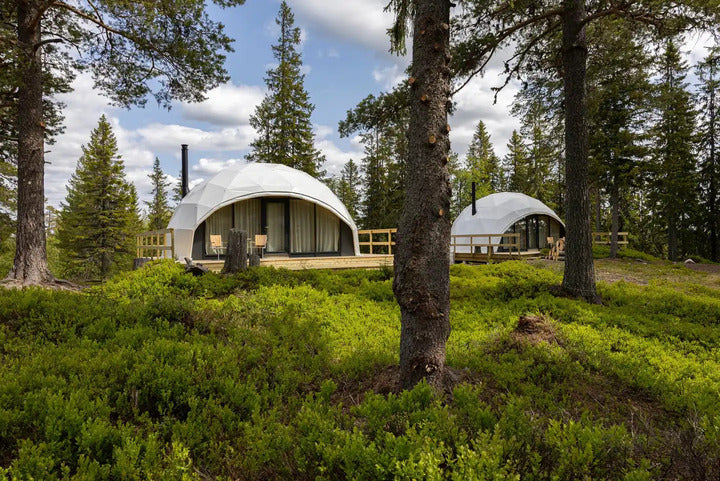

This is an insulated dome for all-year round glamping. It can withstand harsh weather conditions. Birch plywood interior panels and panoramic glass wall creates a luxurious environment inside. Dome in the photos and videos is Ø8m H4m F4 1/2.

Fill the form below to get an offer 👇

Complete set:

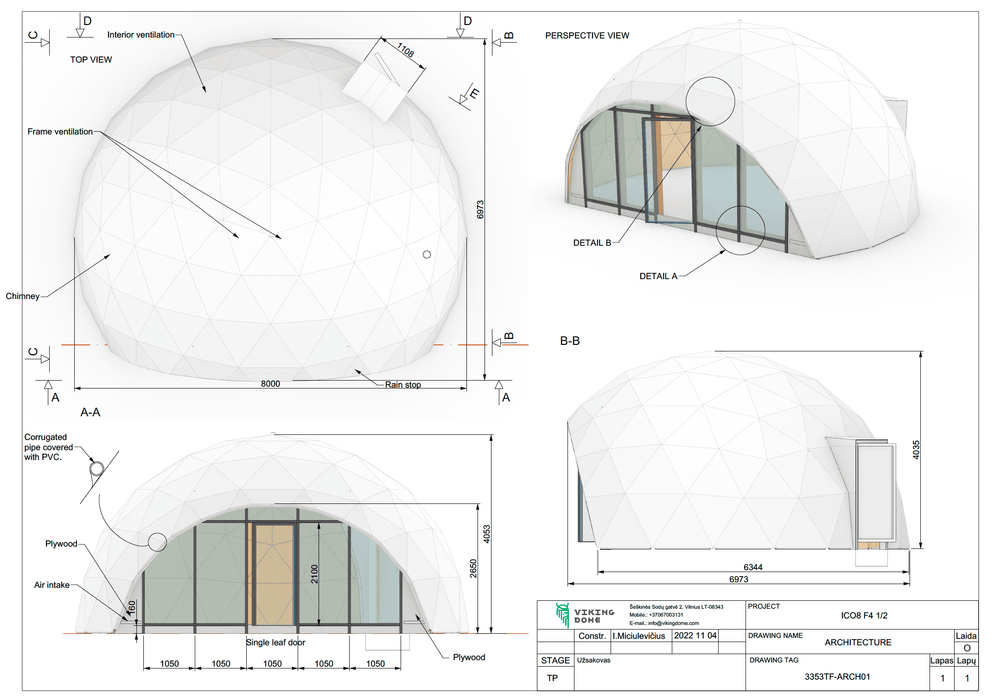

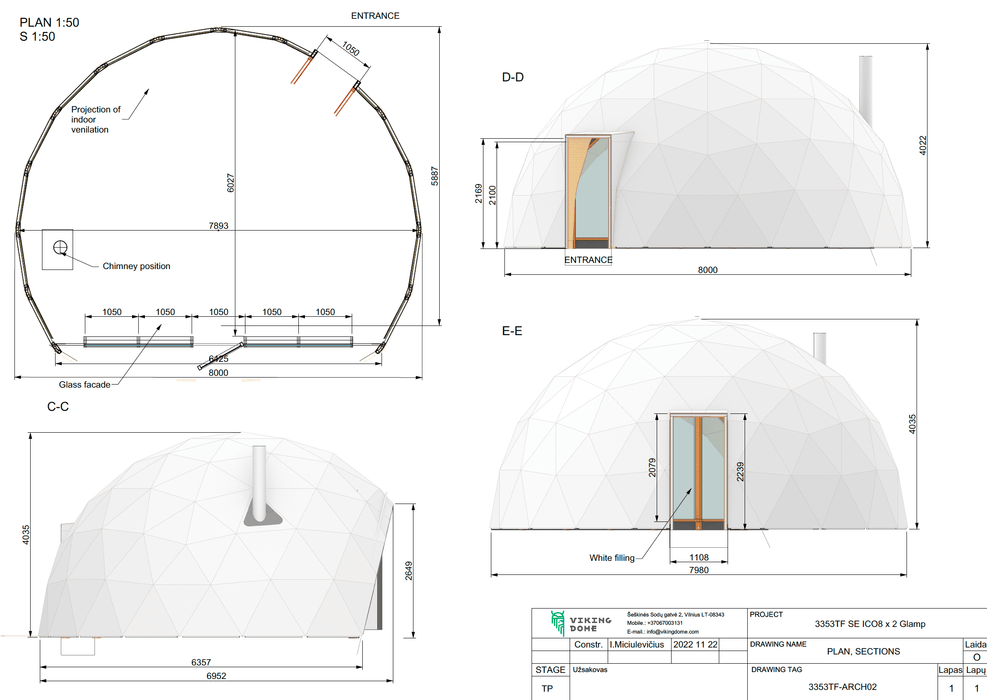

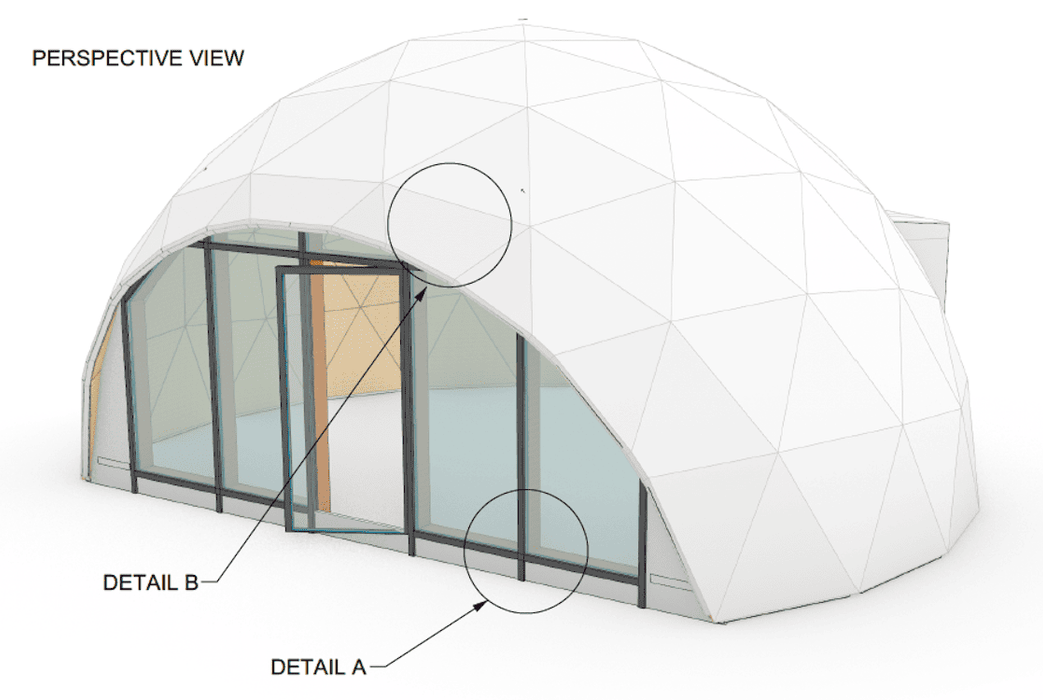

• Design drawings and assembly manual – 52 pages PDF
• PVC-OSB façade. The façade of the dome is multi-layered. External coating: PVC cover, diffusion film, OSB 18mm board, insulating PIR 50mm. Frame connectors galvanized.
• STAR system wooden frame. STAR Classic Zn connectors set. Wood struts. Galvanized screw.

  Frame parts are not visible when the frame is covered with panels from the outside and inside. C24 class structural wood is used, and double-layer galvanized STAR connectors. The insulation layer is inside, between interior plywood panels and external OSB panels.

  The visible frame parts of the panoramic window are made of ash wood. STAR connectors are stainless steel. There are polycarbonate spacers between the ash wood and the PVC coating.

• Insulation: Triangle panels PIR 50mm. Fireproof class B-s1, d0.

  FF-PIR thermal insulation panels are made of rigid polyisocyanurate (polyurethane) foam (PIR) core and are covered with multi-layer aluminum foil on both sides.

  The extremely low thermal conductivity of these panels (λD = 0.023 W/(mK)) allows the thickness of structures to be reduced by up to 2 times. This not only saves space and usable area on the premises but also reduces the weight of the structure.

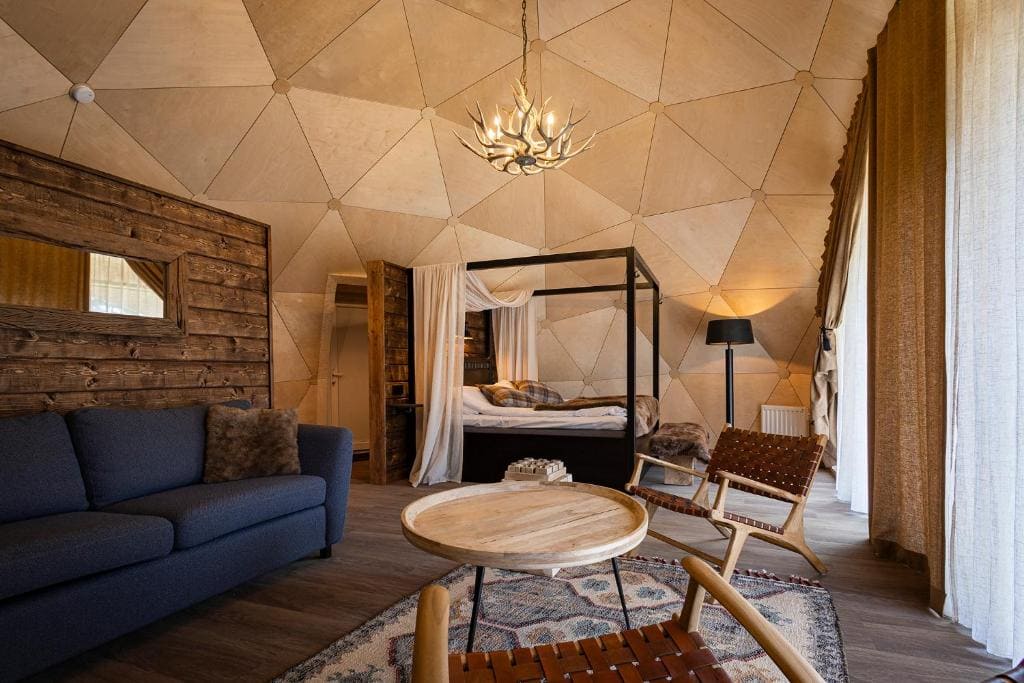

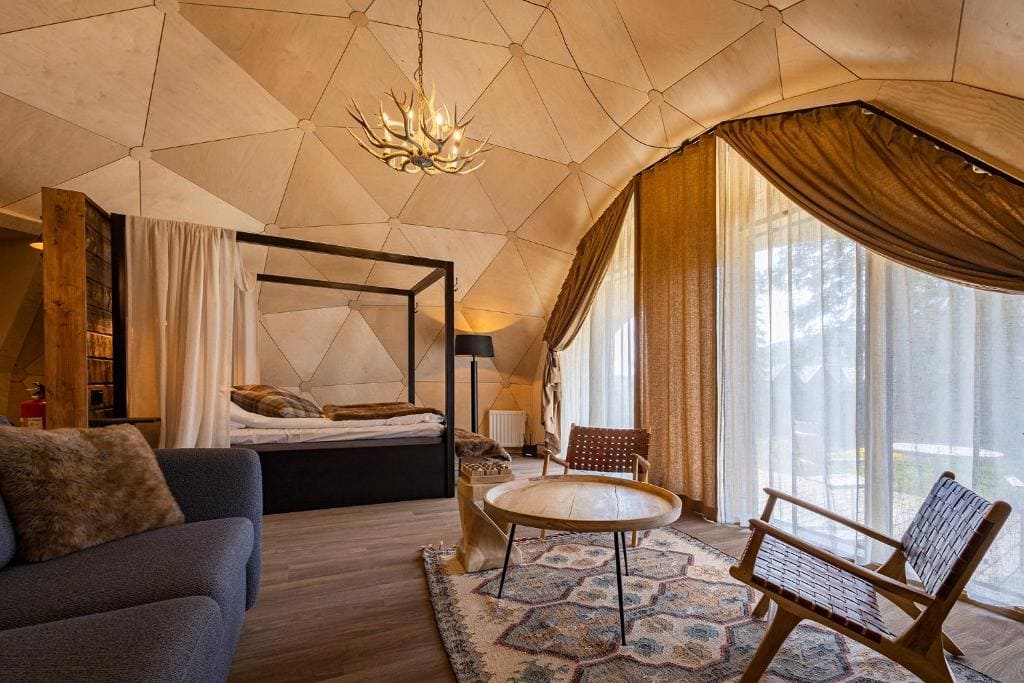

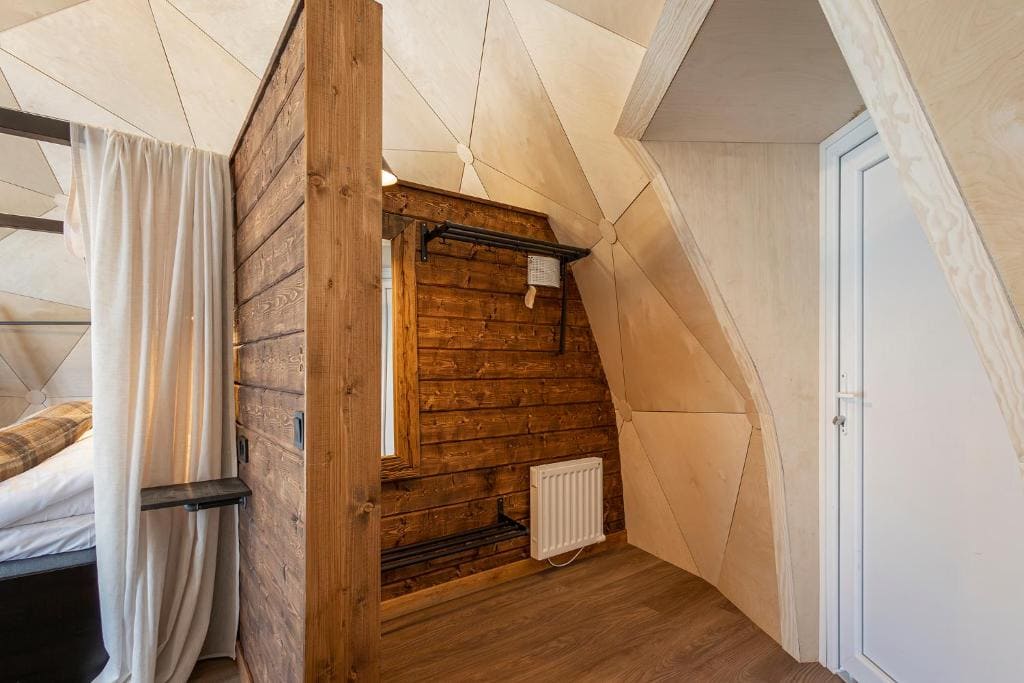

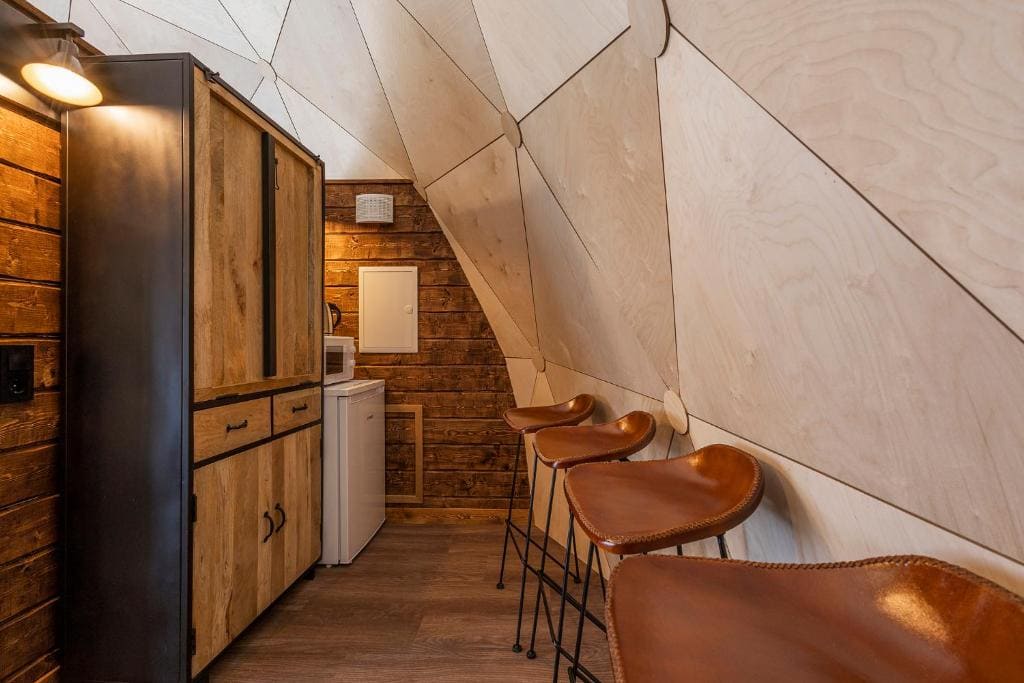

• Interior finishing: Birch plywood triangular panels are attached to the frame with thin nails. Plywood surface - natural untreated wood. If you want to improve the interior, you can paint or varnish the plywood after installation.

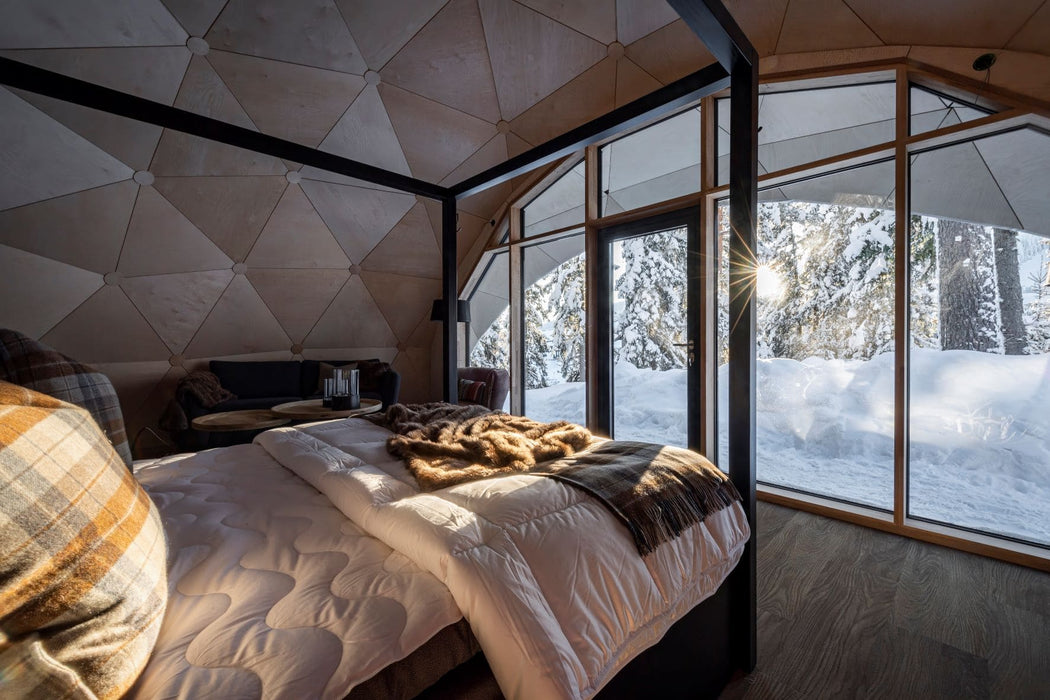

• Double pane IGU Glass façade. Aluminum and rubbers system for glazing. Frame wood parts hardwood Ash.

Optional:

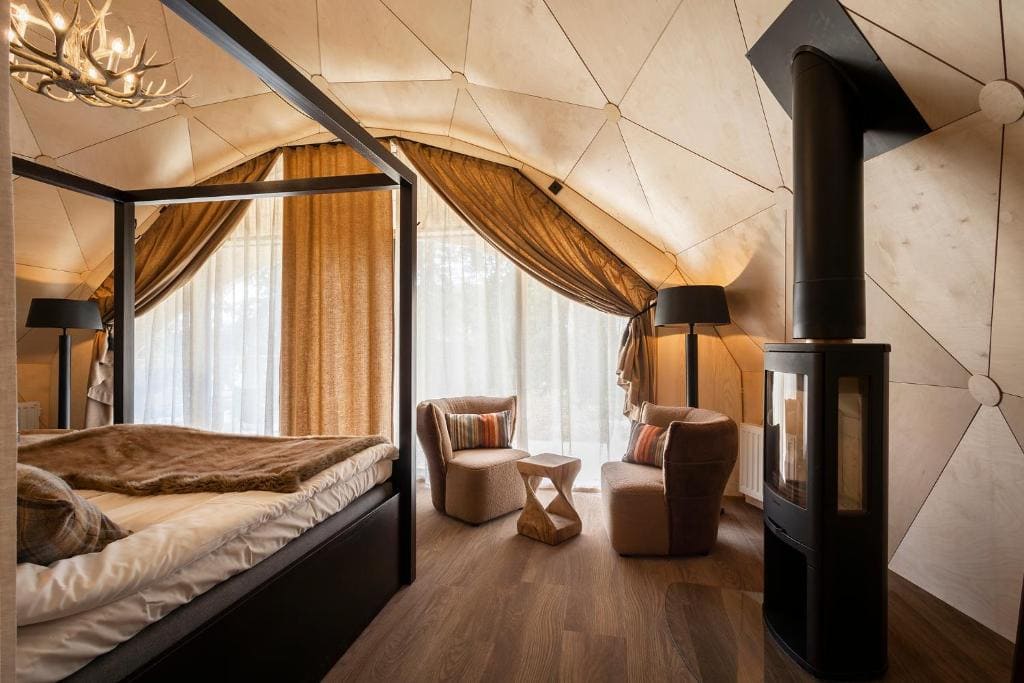

• A place for a fireplace. Fireproof stainless steel parts for the interior and exterior of the chimney. Fireplace and chimney not included.

Delivery:

• Europe: Delivery to door by truck in 10 weeks.

Outside EU, custom clearance is not included. We ship from our production facility in Vilnius, Lithuania, European Union. For more information, please read our Shipping Policy.

Maintenance:

No special maintenance is required in warm weather. If you want to wash off dirt, use normal detergents and water. In winter, when there is a lot of snow, snow must be removed from the walls of the dome. Snow can damage the clear PVC cover panoramic window.
