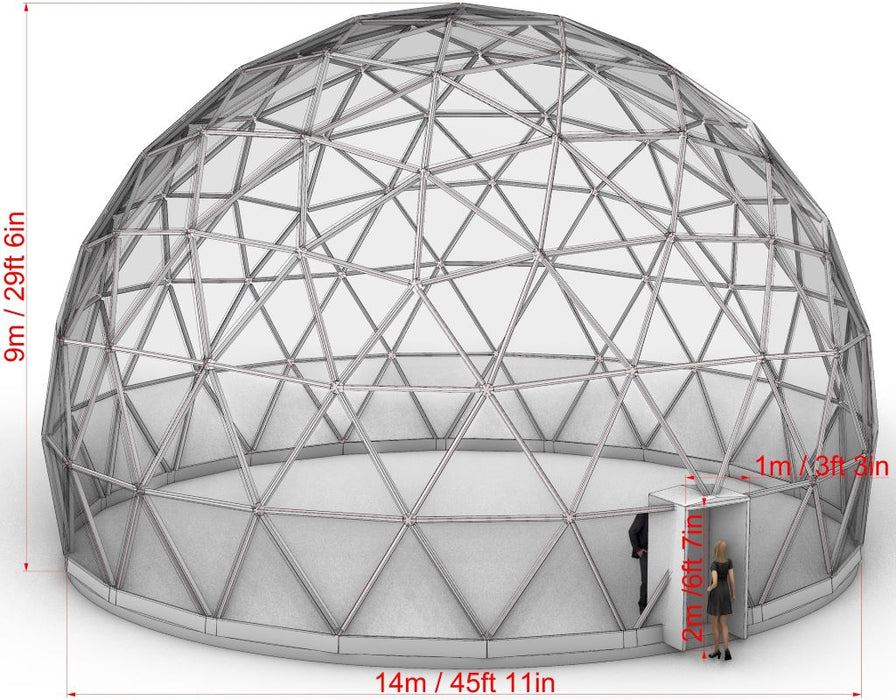

Ø14m (45ft) Insulated Glass Dome F4 1/2 + 1 row

Glass Dome – Ø14m (45ft) Structure / Insulated Glass Units

Product Overview

A stunning 14-meter (45-foot) diameter glass dome designed with precision and durability in mind. Ideal for use as a greenhouse, event space, glamping pod, or architectural feature.

Specifications

• Diameter: 14 m (45 ft)
• Height: 9 m (29 ft)
• Structure Type: Icosahedron V4 1/2
• Interior Floor Area: 153 m² (1646 sq ft)
• Snow Load Resistance: 2 kN/m². Up to 2 m (6 ft) of snow cover. Wind Load resistance up to 100 km/h or 27 m/s

• Wind Load Resistance: up to 100 km/h or 27 m/s

Delivery Options

• EU: Door-to-door truck delivery (10–12 weeks)
• Outside EU:
  • Truck delivery: 11–13 weeks
  • Sea freight to port terminal: 17–19 weeks
  • Air cargo to airport terminal: 12–14 weeks
• Customs clearance not included for deliveries outside the EU
• Ships from: Vilnius, Lithuania (EU)
• Shipping: Calculated at checkout

Read our full Shipping Policy ›

What’s Included

• Step-by-step DIY assembly instructions
• Frame: T-STAR system (T50), prefabricated steel struts and connectors, powder-coated (RAL C3, dark grey)
• All necessary bolts, nuts, and PE caps
• Glazing: 8 mm tempered clear glass panels
• Black silicone sealant
• Door Frame: Steel, powder-coated (RAL C3, dark grey)
• Glass Door: 8 mm tempered glass (2000 × 1032 mm), AISI hinges, lockable handle with keys

Warranty & Returns

• 5-year manufacturer’s warranty (covers manufacturing defects only)
• Not covered: misuse or damage from extreme weather conditions
• Returns: Not accepted

Payment Methods

• Visa, MasterCard, American Express (online)
• Bank transfer

Learn more about Glass Dome Technology ›
