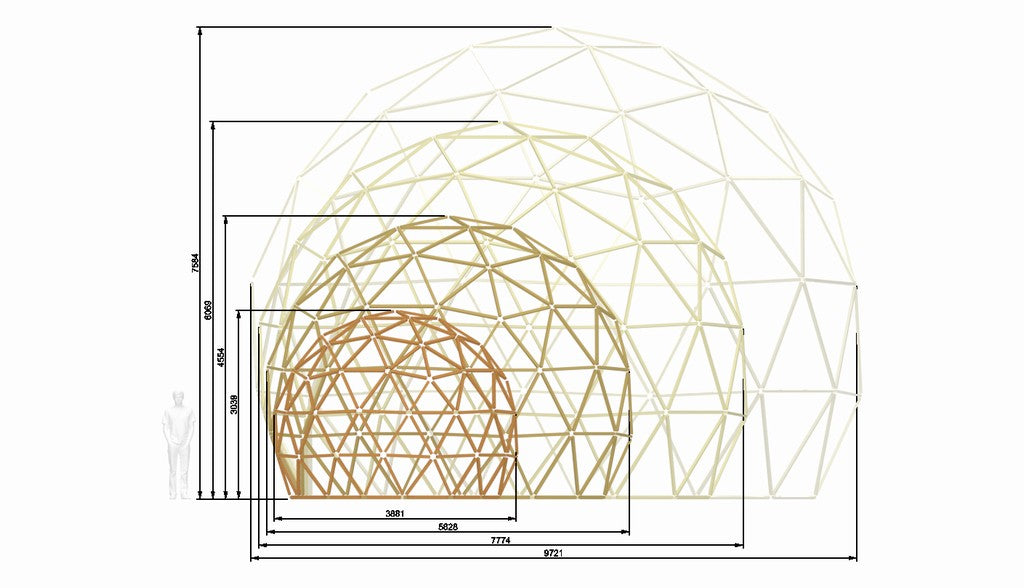

T-STAR Connectors Kit for self-manufacturing geodesic dome. With this connectors kit you can build a dome from 4m to 10m (from 13ft to 33ft) in diameter. Please send a request if you want to order a connectors kit for a custom size dome.

Ø4-10m / 13ft-33ft 3V 5/7 Geodesic Dome T-STAR connectors kit for DIY Icosahedron. Made-to-order. Production time 4-8 weeks. Packing - 1 pallet.

Outside Europe, custom clearance is not included. We ship from our production facility in Vilnius, Lithuania, European Union. For more information, please read our Shipping Policy.

Complete T-STAR Connectors set:

T-STAR Connectors 76 units
Specification of T-STAR Connectors.
Scheme for struts cutting. Struts not included.
Scheme for assembling, architectural drawings.
Safe packing.

T-STAR Size Explanation:

T50: For steel T-profile 50x50mm. For Ash/Oak struts 50x50mm or 50x70mm.

T70: For steel T-profile 70x70mm. For Ash/Oak struts 70x70mm or 70x120mm.

T100: For steel T-profile 100x100mm.

T-STAR Material Explanation:

1. Steel S235 Raw - Not painted & not galvanized Structural Steel S235. Raw steel surface. This is a semi-finished product.

2. Steel S235 Zn - Structural Steel S235. Surface galvanized Zn 100 microns.

3. Steel S235 RAL C3 - Structural Steel S235. Surface powder coated RAL C3 100-120 microns.

4. Steel S235 RAL C5 - Structural Steel S235. Surface powder coated RAL C5 180-200 microns.

5. Steel S235 Zn RAL C5M (marine) - Galvanized & painted structural Steel S235. Surface galvanized Zn and painted coated RAL. 1-st layer surface galvanized Zn 80-100 microns. 2-nd and 3-d layers priming 2x 60-90 microns. 4-d layer surface finishing RAL 60-80 microns. The total C5M corrosion protection coating thickness is 260-360 microns. According to ISO 12944, C5M is a durable coating system for highly corrosive environments at the marine level, designed for structures near the sea or offshore.

6. Steel S355 Raw - Not painted & not galvanized Structural Steel S355. Raw steel surface. This is a semi-finished product.

7. Steel S355 Zn - Structural Steel S355. Surface galvanized Zn 100 microns.

8. Steel S355 RAL C3 - Structural Steel S355. Surface powder coated RAL C3 100-120 microns.

9. Steel S355 RAL C5 - Structural Steel S355. Surface powder coated RAL C5 180-200 microns.

10. Steel S355 Zn RAL C5M (marine) - Galvanized & painted structural Steel S355. Surface galvanized Zn and painted coated RAL. 1-st layer surface galvanized Zn 80-100 microns. 2-nd and 3-d layers priming 2x 60-90 microns. 4-d layer surface finishing RAL 60-80 microns. The total C5M corrosion protection coating thickness is 260-360 microns. According to ISO 12944, C5M is a durable coating system for highly corrosive environments at the marine level, designed for structures near the sea or offshore.

11. INOX Stainless steel AISI304 matt - Stainless steel AISI304 matt surface.

12. INOX Stainless steel AISI316 gloss - Stainless steel AISI316 gloss surface.

13. ALU Raw - Not painted aluminum, raw matt surface.

14. ALU RAL - Powdered aluminum. Surface powder coated RAL C3 100-120 microns.

Notes:

RAL C3 is a common corrosion class used in construction and interiors.
RAL C5 is a high corrosion class used in outdoor construction and hi humidity interiors.
RAL C5M (marine) is a highest corrosion class used in shipbuilding, for structures near the sea or offshore.
Galvanized Zn steel is the high corrosion class. Most often used in industrial construction
Structural Steel S355 is of higher classes than S235. S235 can be used in non-critical structures up to 12 meters in diameter. S355 is most commonly used in the construction of large public buildings.
Choose your own any RAL color.

Read more about the T-STAR system here.

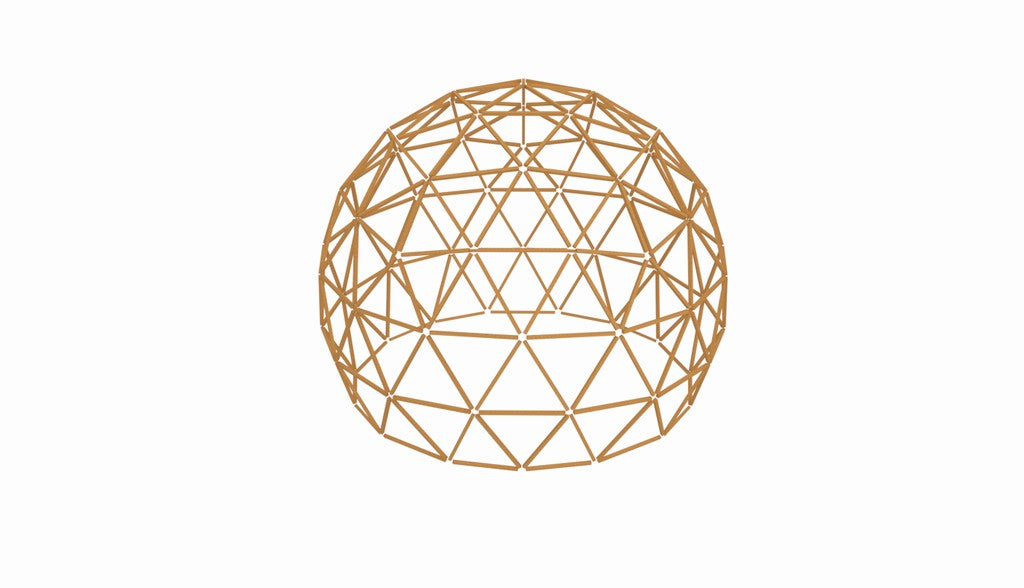

Geometry: Icosahedron

Warranty:

5 year manufacturer's warranty covers manufacturing faults / defects only, not misuse or damages arising from adverse weather conditions.

IMPORTANT:

When you checkout, please indicate the diameter of your dome in the notes. This is important for the schemes and drawings we will provide.
